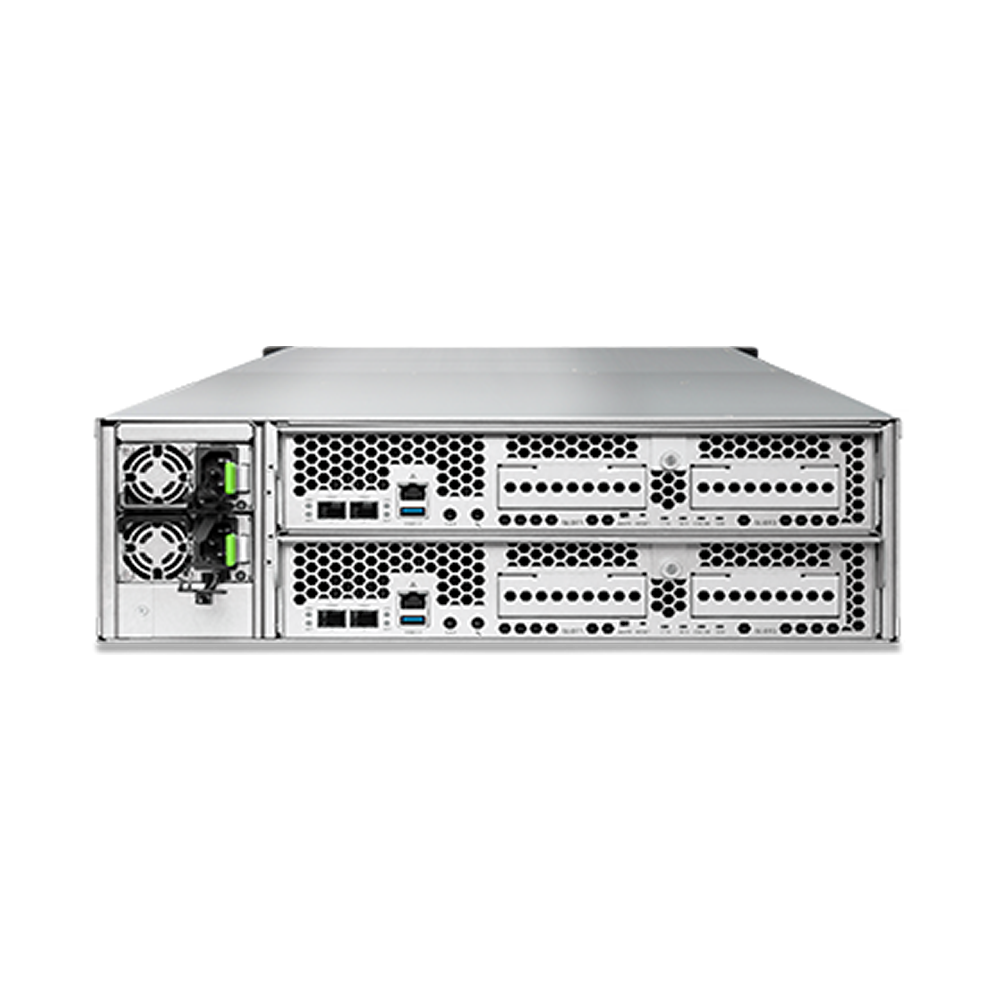

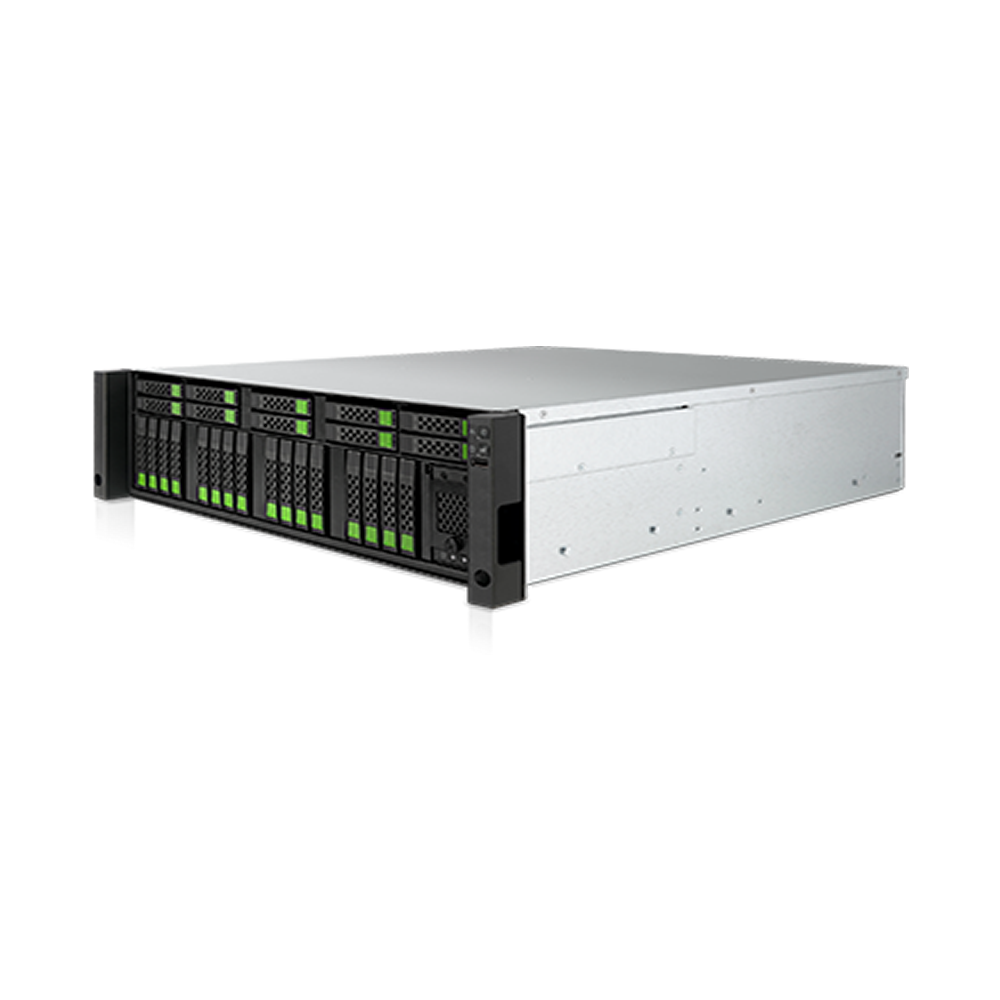

QSAN XCubeFAS XF3126D 3U

  • Marka:

  • Qsan

Dual-controller All-NVMe Flash Storage System, Intel Xeon 64-bit 6 core CPU, default 32GB RAM(MAX 768GB RAM), 2X10GbE SFP+, Redundant Power Supply, 4 slots for optional host cards (Slot 1 & Slot 2: Optional host cards for 16Gb/32Gb Fibre Channel, or 10GbE/25GbE iSCSI) XEVO Operating System, Thin Provisioning, Snapshot, Clone, Remote Replication. 400K IOPs/0.5ms, 200K IOPs/0.3ms

Dual-controller All-NVMe Flash Storage System, Intel Xeon 64-bit 6 core CPU, default 32GB RAM(MAX 768GB RAM), 2X10GbE SFP+, Redundant Power Supply, 4 slots for optional host cards (Slot 1 & Slot 2: Optional host cards for 16Gb/32Gb Fibre Channel, or 10GbE/25GbE iSCSI) XEVO Operating System, Thin Provisioning, Snapshot, Clone, Remote Replication. 400K IOPs/0.5ms, 200K IOPs/0.3ms

Özellikleri
Architecture Active-Active dual-controller
Storage OS XEVO
CPU
Processor Intel® Xeon®
CPU Architecture 64-bit
CPU Frequency 6-Core
Memory
System Flash -
Memory Module Pre-installed 16GB DDR4 ECC RDIMM
Total Memory Slots 6
Memory Expandable up to 384GB
Notes Per Controller
Storage
Drive Bays

2.5" Slot x 26
Maximum Drive Bays with Expansion Unit -
Compatible Drive Type

2.5" U.2 dual port NVMe SSD
Drive Interface

NVMe
Maximum Internal Raw Capacity 399TB
Maximum Raw Capacity with Expansion Units -
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 15.36 TB drive x 26
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 1 (Rear)
HDMI Port -
Others UPS Port x1
Controller port x 1
Notes Per controller
Connectivity Port
1GbE RJ45 LAN Port 1 (Onboard Management Port)
10GbE RJ45 LAN Port 2 iSCSI (Option)
10GbE SFP+ LAN Port 2 iSCSI (Onboard)
4 iSCSI (Option)
Thunderbolt 3 -
25GbE SFP28 LAN Port 2 iSCSI (Option)
16Gb SFP+ Fibre Channel 4 (Option)
2 (Option)
32Gb SFP28 Fibre Channel 2 (Option)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port -
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 2
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 132 x 438 x 645
Chassis Form Factor MAYIS" Rackmount 3U 26 Bay
Net Weight (kg) 25.6
Gross Weight (kg) 34
Notes -
Memory Protection
Super Capacitor Module + Flash Module -
Battery Backup Module + Flash Module
Notes -
Others
System Fan 4 pcs (per controller)
Replaceable System Fan
Power Recovery
Scheduled Power On/Off -
Wake on LAN/WAN
Power Supply Unit / Adapter 800W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 429W
British Thermal Unit -
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -15°C to 55°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 5% to 95%
Notes -
Certification
Certifications

CE

FCC

BSMI
Notes -
Warranty
Standard Warranty 3 years
Battery backup module : 1 year
Notes -
